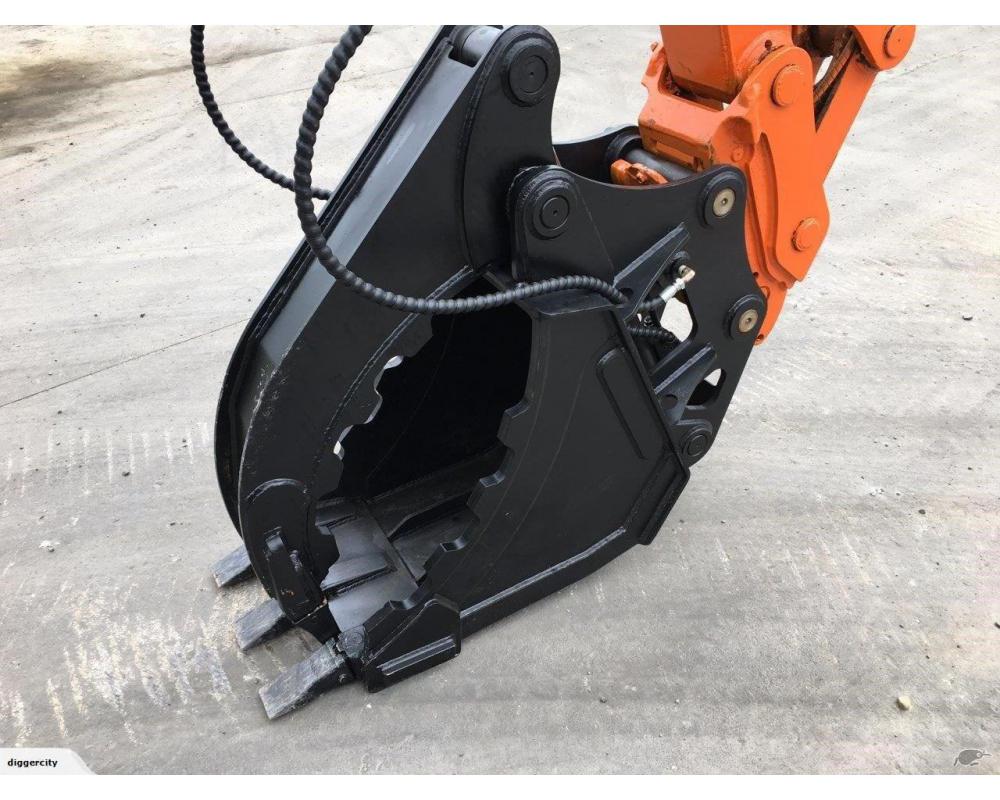

EXCAVATOR GRAB BUCKET 7-8T ZX75

Note: Images are of a 10-14T though this is similar

Model 6-9 ton Excavator

50mm Pins

200mm Between Ears

300-315mm pin Centre to Pin Centre (can fit multiple sizes)

If you are unsure what size your excavator pins are please check this chart which is typically a good indication as to what you might have (please note some models may vary slightly depending on the country they were ordered for

https://www.guncity.com/diggerhitchsize

If you want to see one in operation please call to arrange a time to view.

Would suit any of these machines pinned to the above specs:

Case CX75, CX80 (50 mm Pins, 300mm Centres 190mm Arm Width, which means you will need 5mm shims on arm side and 5mm machined off bucket side of hitch)

Cat / Caterpillar 308D & 308E (Not 308B or 308C) (50 mm Pins, 200mm Arm Width, 305mm Centres)

Hitachi EX75, ZX70, ZX75, ZX75US, ZX80, ZX85

(50 mm Pins, 200mm Arm Width, 310mm Centres)

Komatsu PC60, PC75, PC78, PC88, PC80, PC90, PW60

(50 mm Pins, 200mm Arm Width, 312mm Centres)

Sumitomo SH60, SH75, SH80

(50 mm Pins, 300mm Centres 190mm Arm Width, which means you will need 5mm shims on arm side and 5mm machined off bucket side of hitch)

Yanmar Vio70, Vio75, Vio80, SV100 (50 mm Pins, 200mm Arm Width, 312mm Centres)

(344073)
