Hydraulic Quick Hitch Kit for 6-9 Ton Diggers

Hydraulic Quick Hitch Kit for 6-9 Ton Diggers

Built for the European market these hitches are well built.

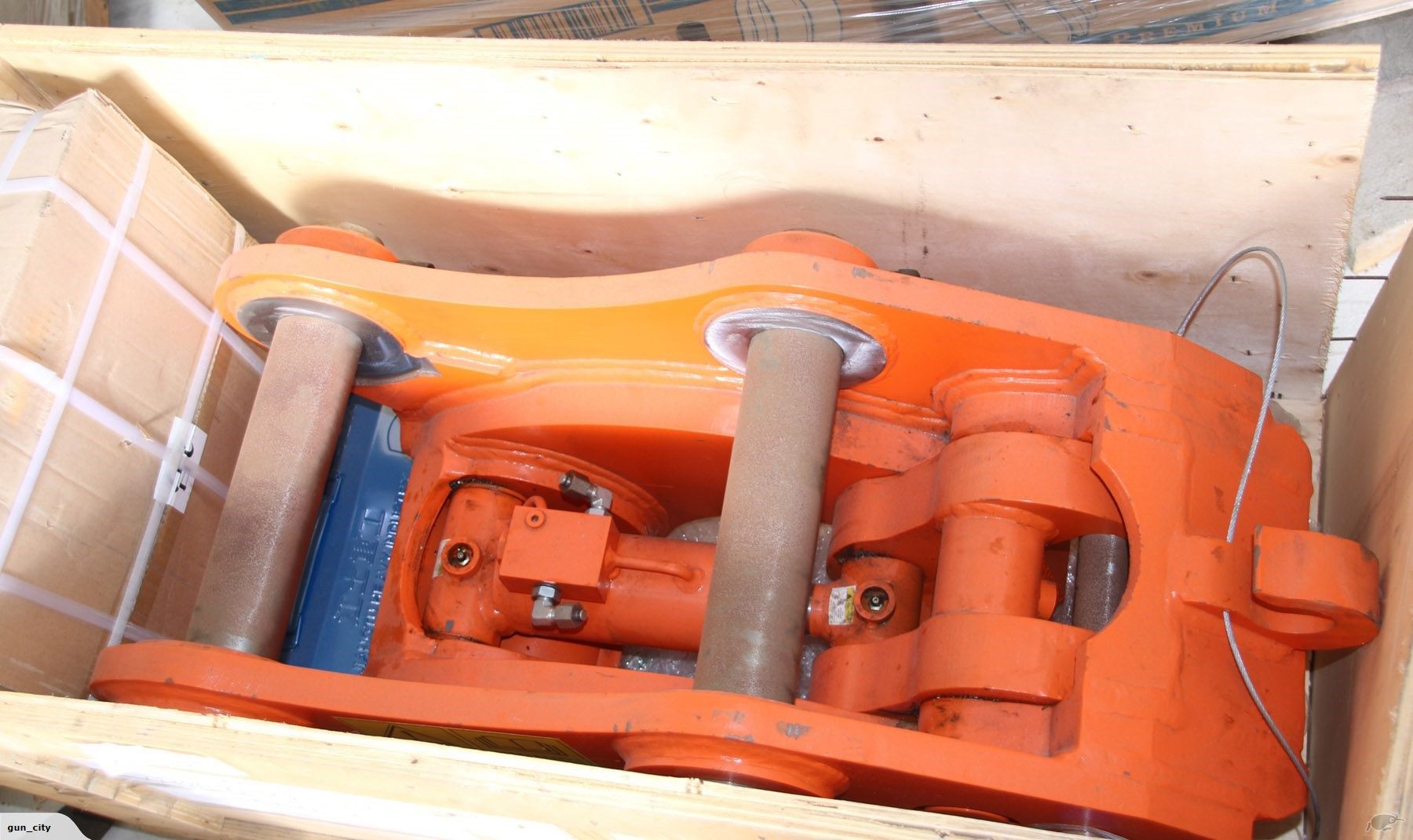

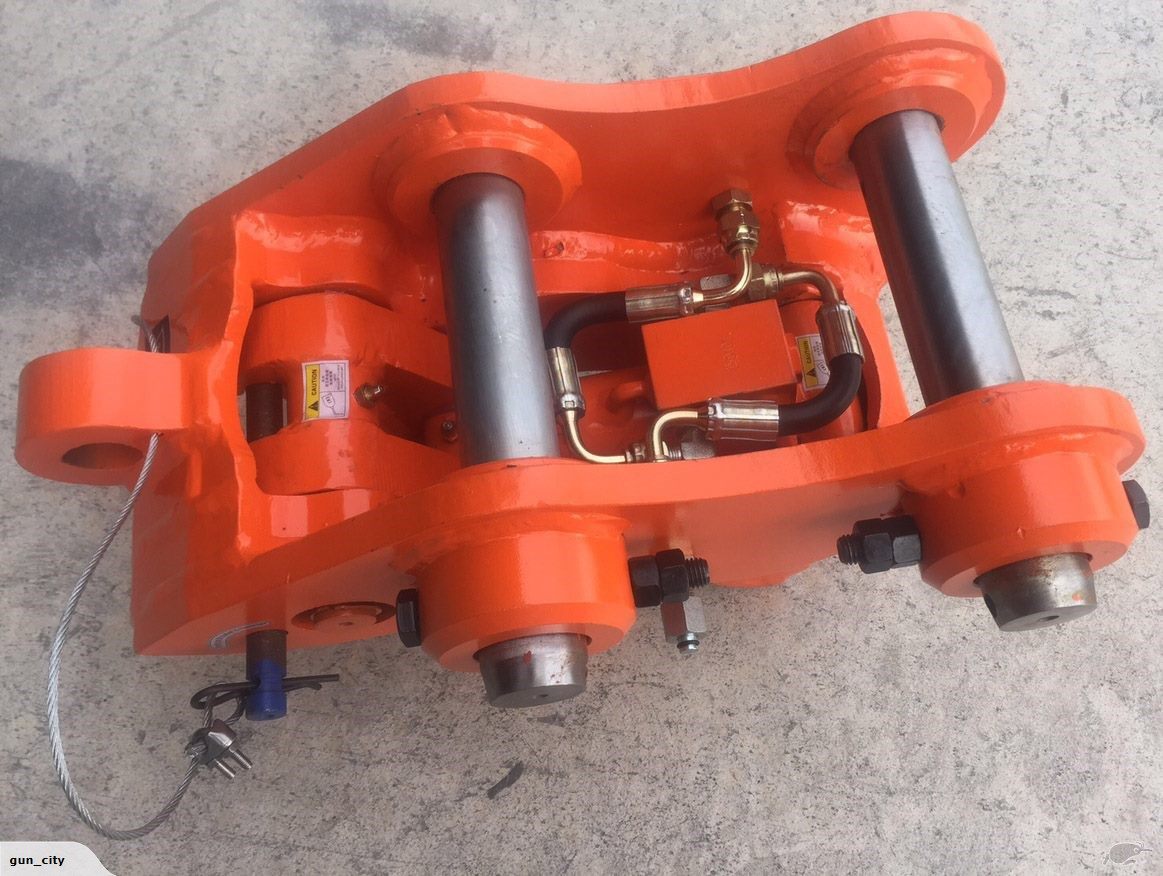

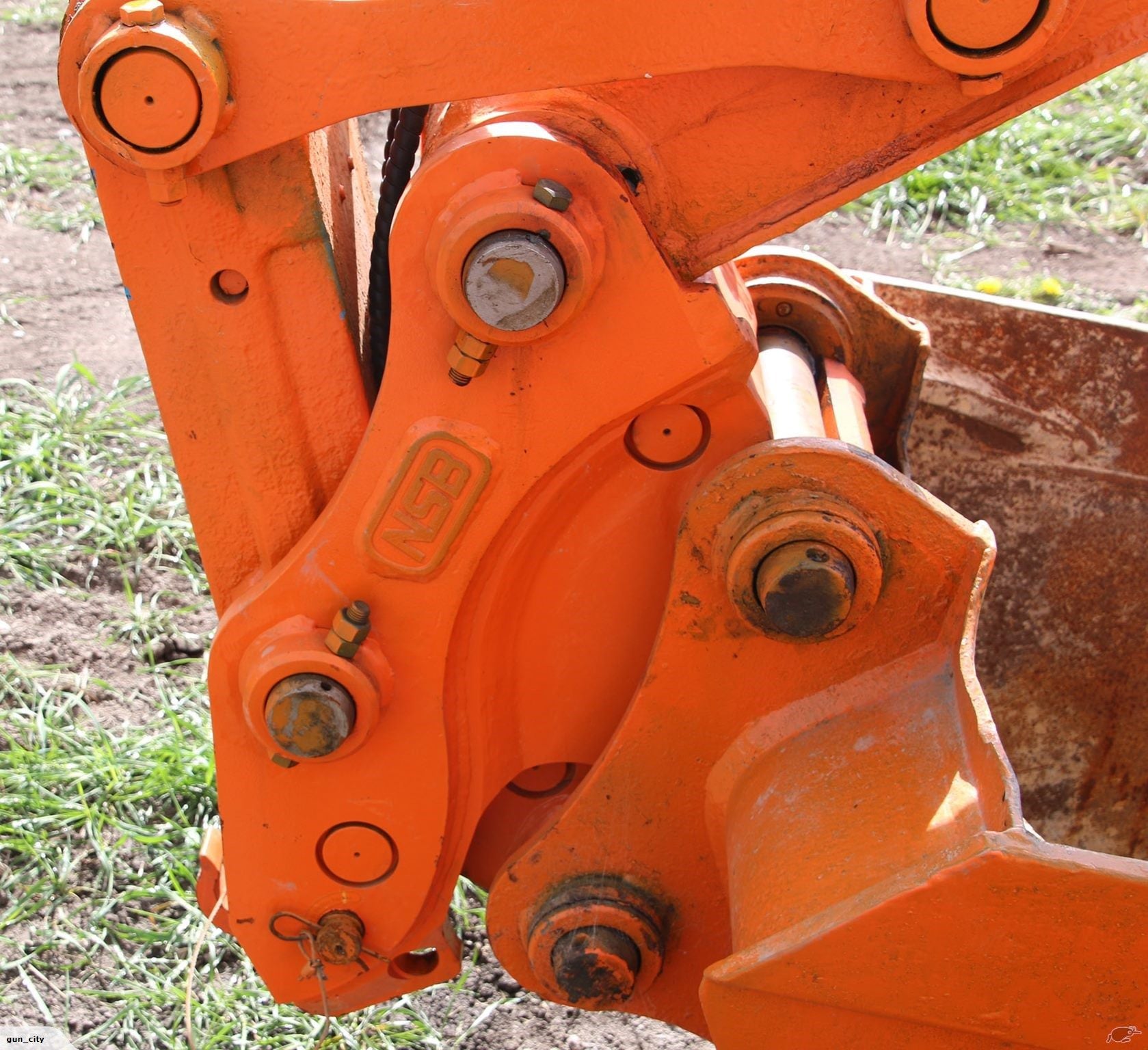

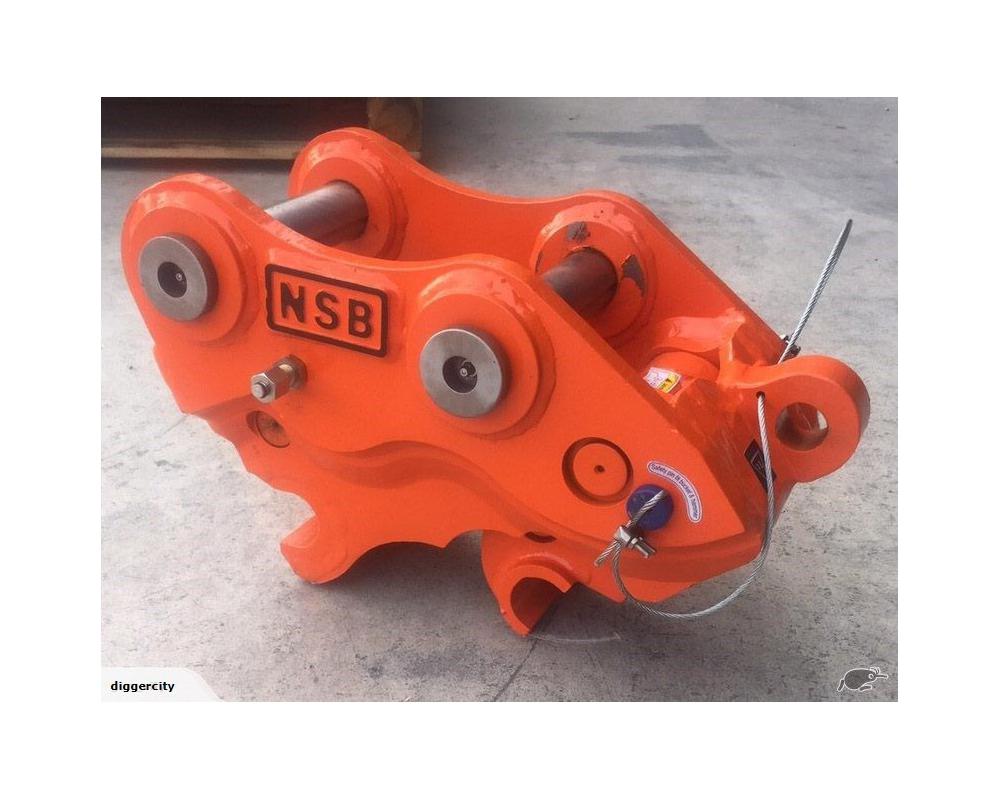

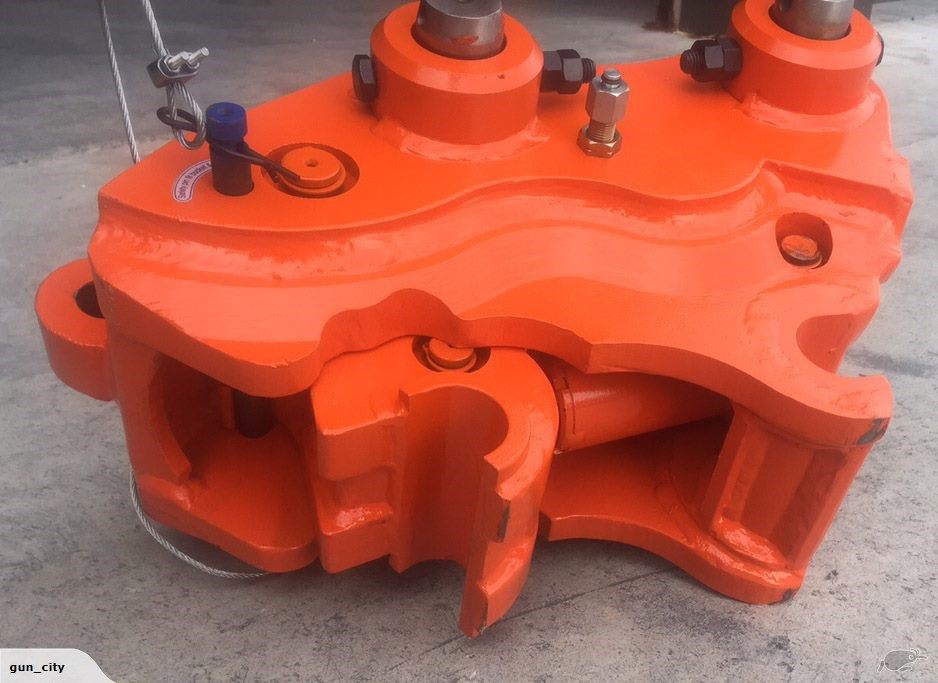

Pictures are for an example , hitch listed is the same only to suit the machines listed!

Pinned for most standard 6-9 ton machines.

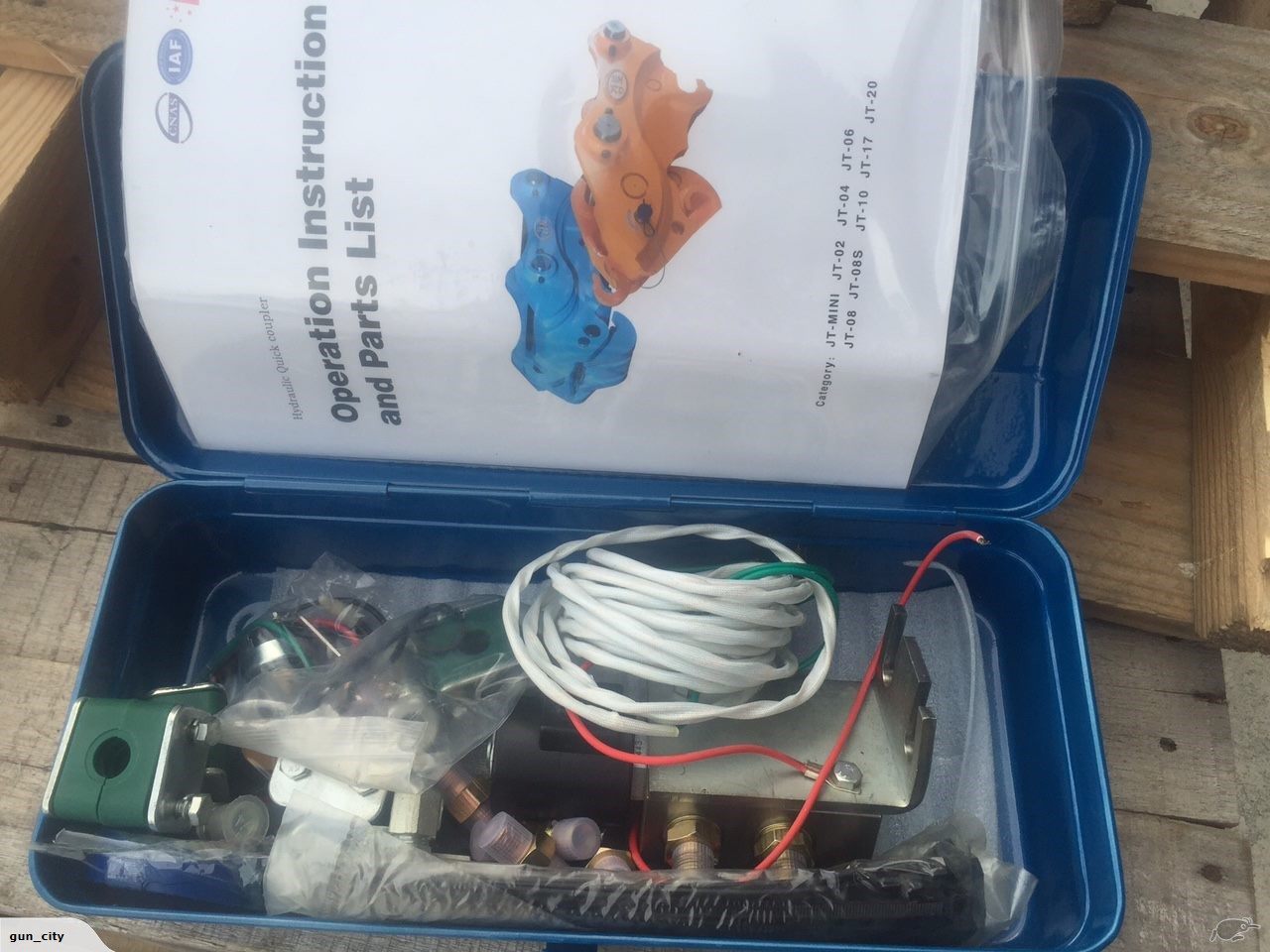

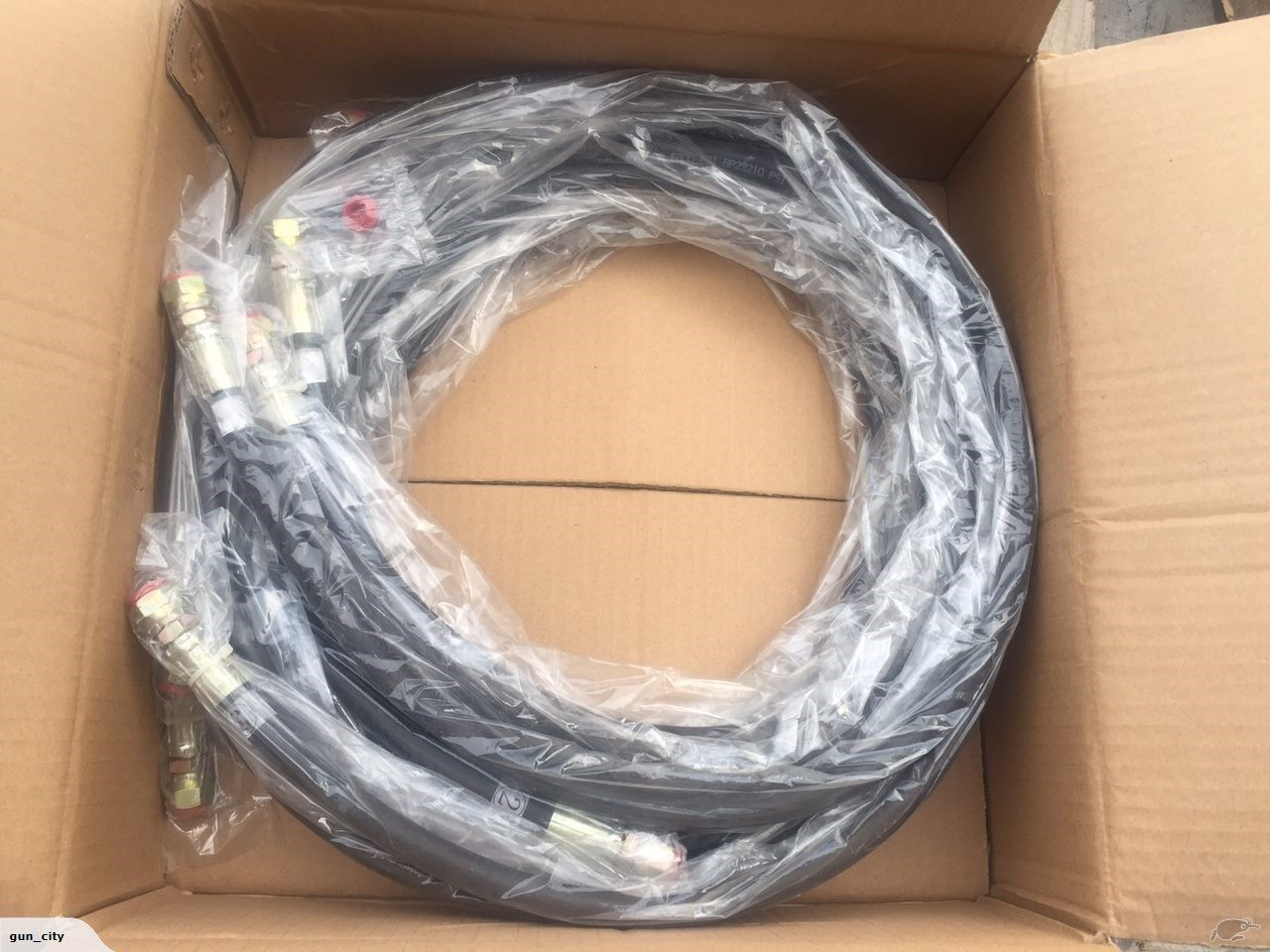

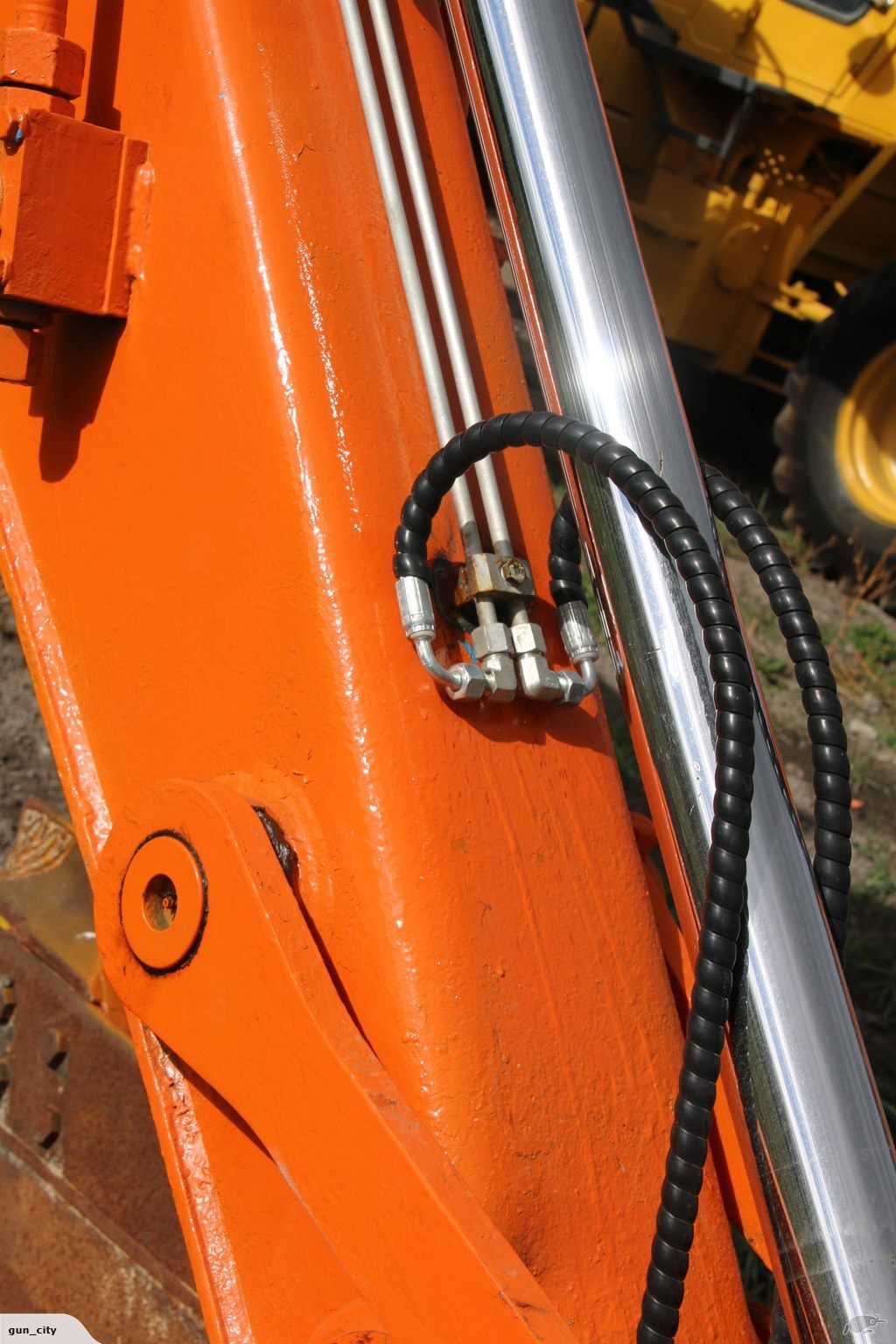

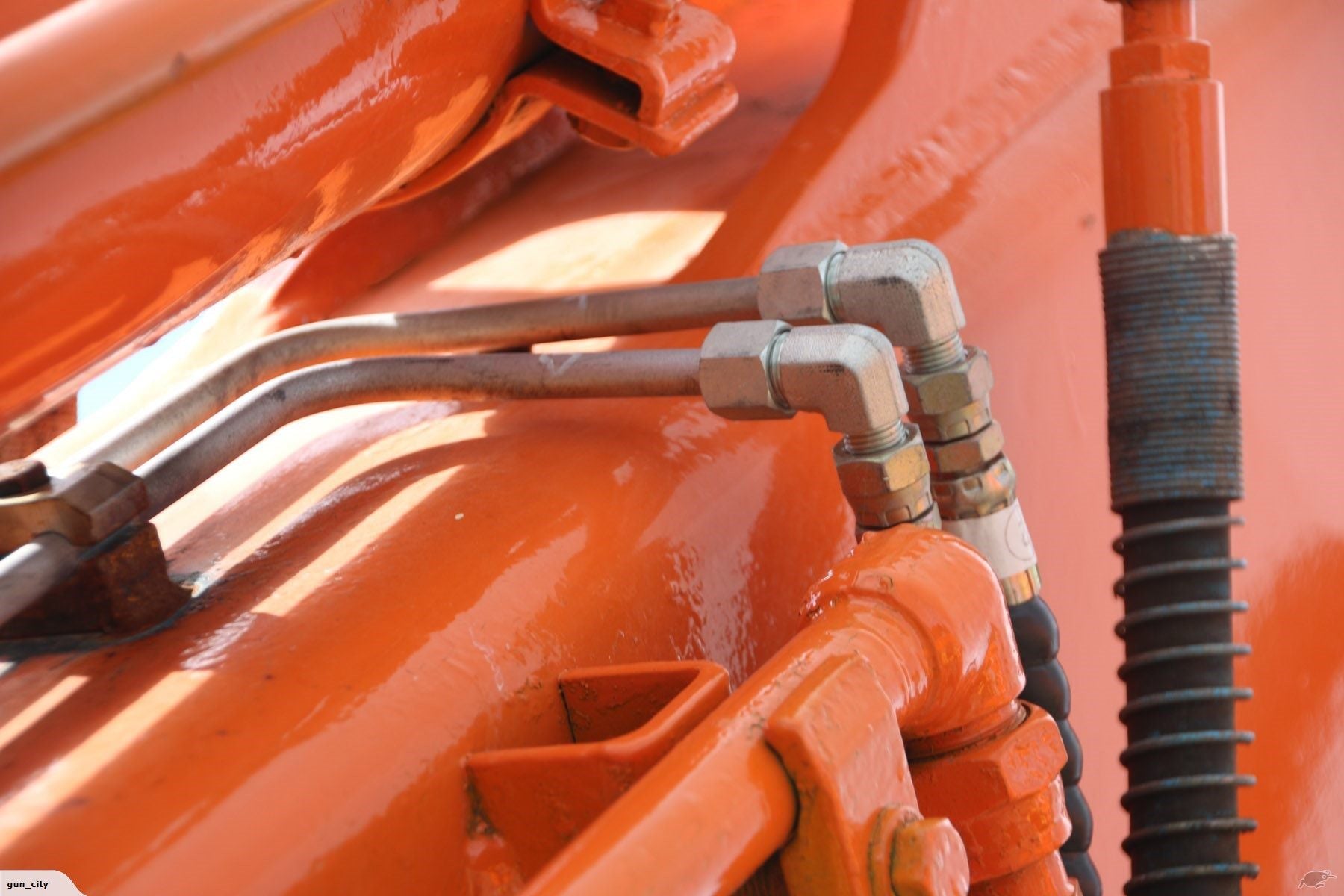

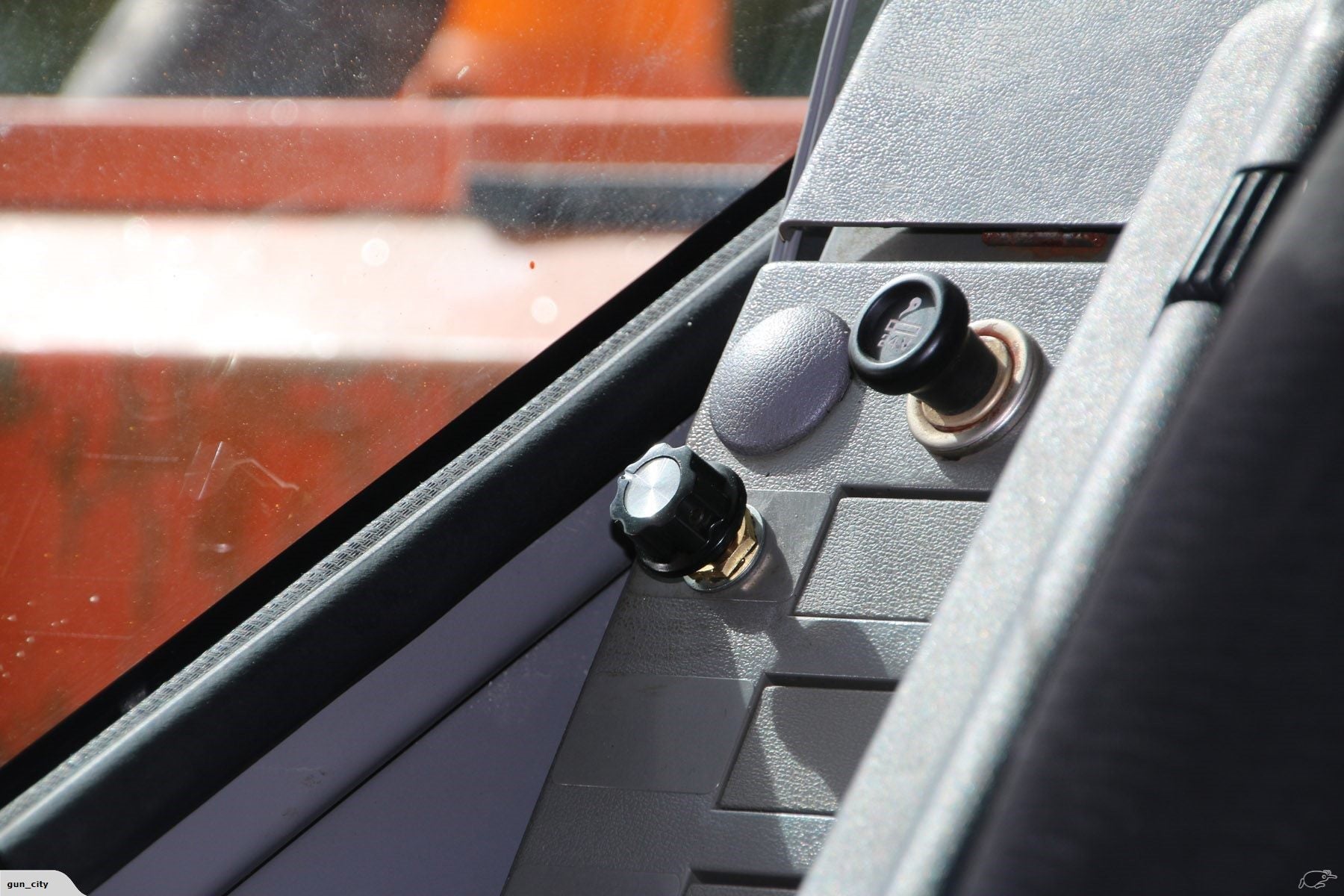

Includes piping, buzzer and switch control required for fitting, this is not included in most hitches available in NZ and be quite costing to buy on their own.

Specs

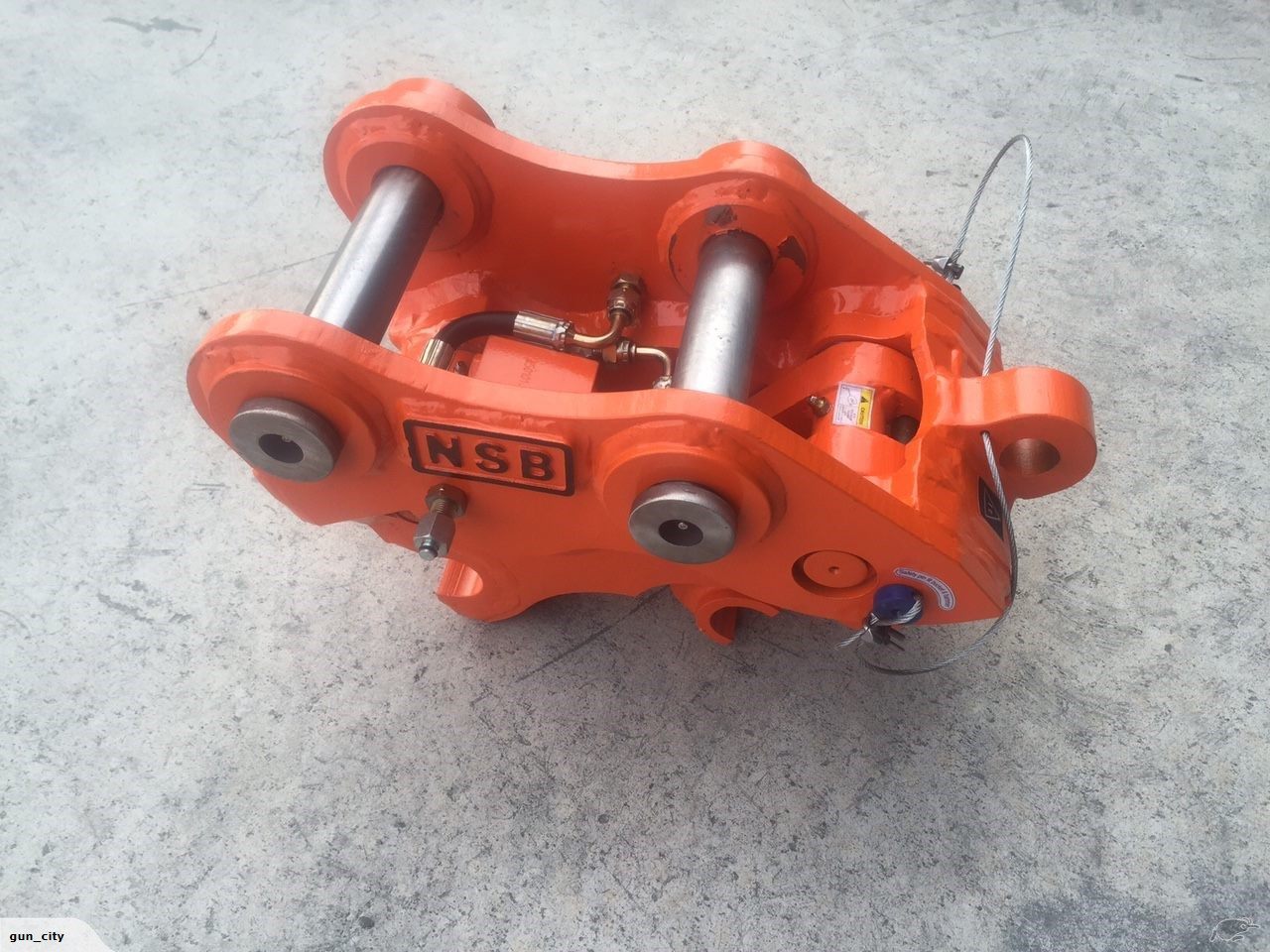

Make NSB
Model 6-9 ton Excavator
50mm Pins
200mm Between Ears
300-315mm pin Centre to Pin Centre (can fit multiple sizes)

Hydraulic
If you are unsure what size your excavator pins are please check this chart which is typically a good indication as to what you might have (please note some models may vary slightly depending on the country they were ordered for

https://diggercity.co.nz/pages/digger-hitch-size

You won’t find a better value for money quick hitch in NZ built to this quality.

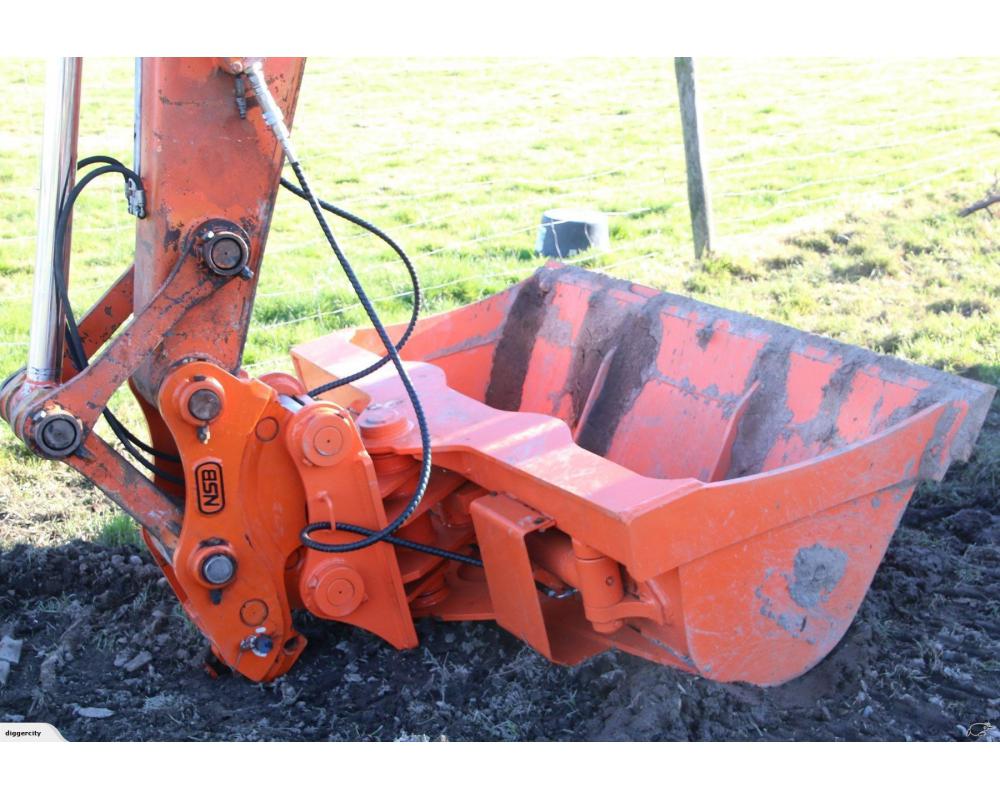

If you want to see one in operation please call to arrange a time to view.

Would suit any of these machines pinned to the above specs:

Case CX75, CX80 (50 mm Pins, 300mm Centres 190mm Arm Width, which means you will need 5mm shims on arm side and 5mm machined off bucket side of hitch)

Cat / Caterpillar 308D & 308E (Not 308B or 308C) (50 mm Pins, 200mm Arm Width, 305mm Centres)

Hitachi EX75, ZX70, ZX75, ZX75US, ZX80, ZX85
(50 mm Pins, 200mm Arm Width, 310mm Centres)


Komatsu PC60, PC75, PC78, PC88, PC80, PC90, PW60
(50 mm Pins, 200mm Arm Width, 312mm Centres)

Sumitomo SH60, SH75, SH80
(50 mm Pins, 300mm Centres 190mm Arm Width, which means you will need 5mm shims on arm side and 5mm machined off bucket side of hitch)


Yanmar Vio70, Vio75, Vio80, SV100 (50 mm Pins, 200mm Arm Width, 312mm Centres)
