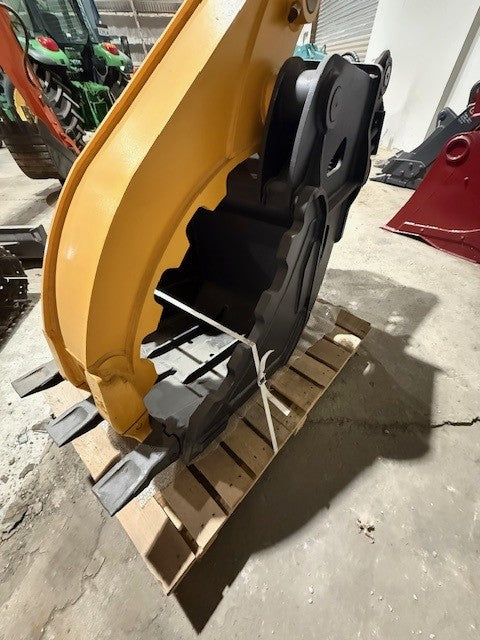

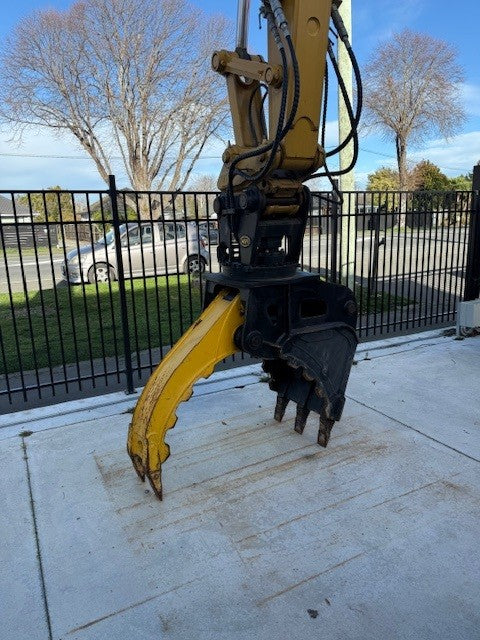

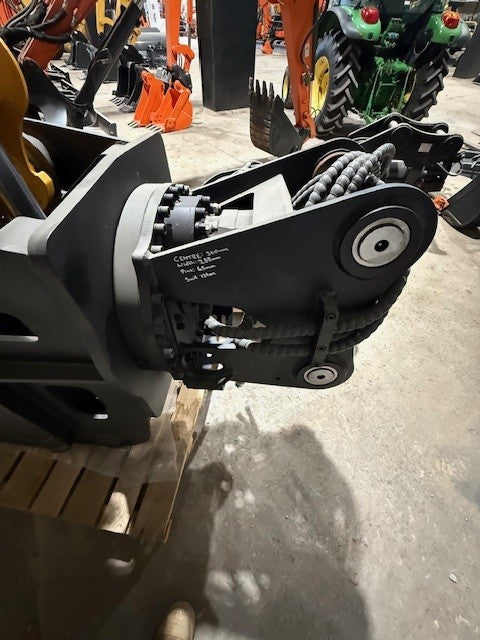

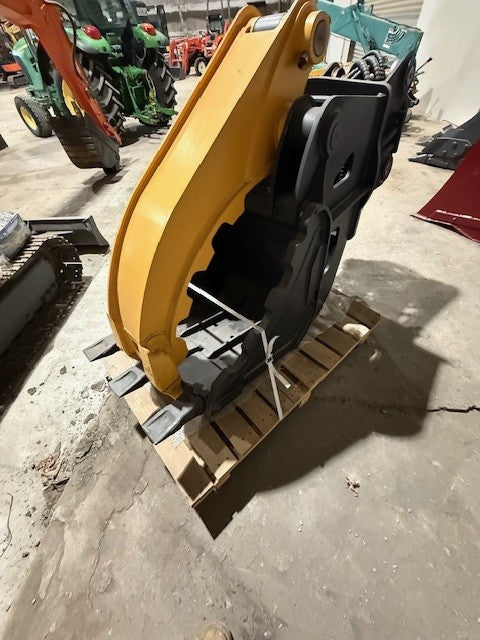

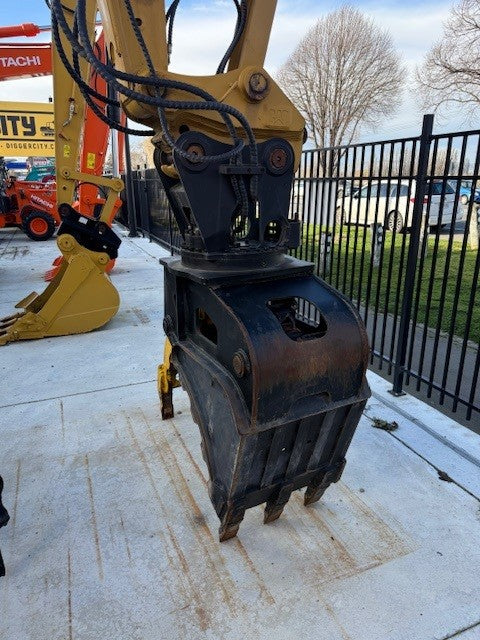

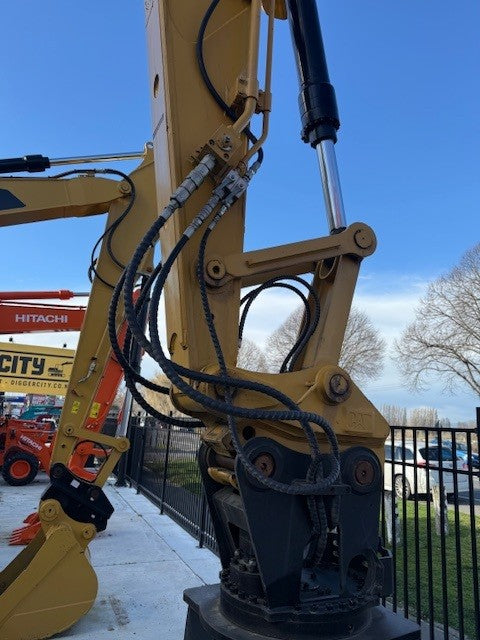

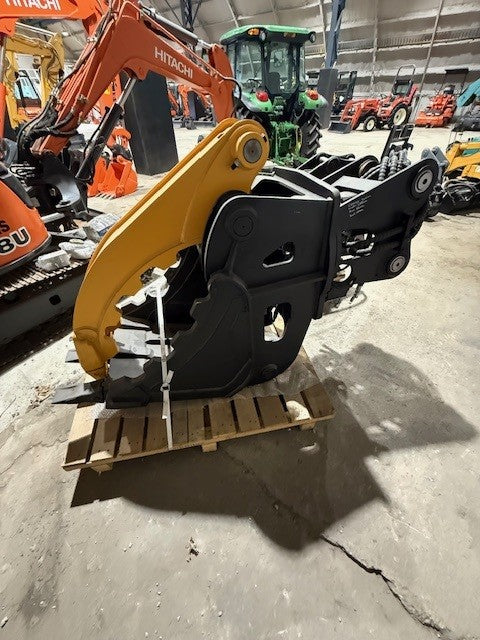

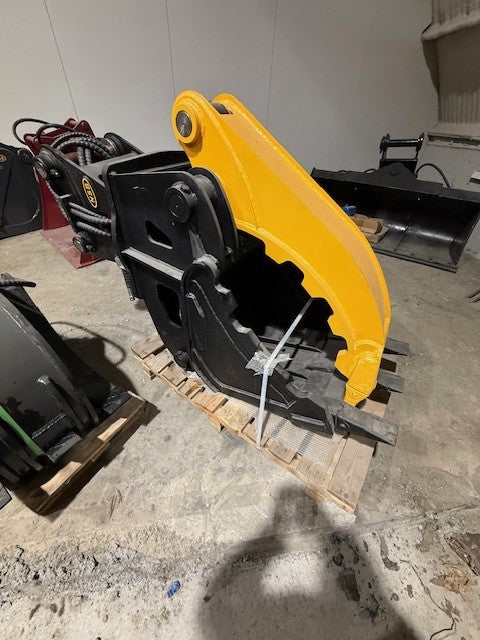

Excavator Rotate Grab Bucket ZX120 12 Ton

ZX120 12 ton rotating grab bucket

$13,912 +GST ($15,999 incl GST)

New hydraulic NSB rotating grab bucket complete with all piping, valving and fittings.

Will suit most 10-14ton excavators with 65mm pins

Once you have had a grab bucket you won't want to live without one!
This one has the added bonus of the rotate function.

Very solid build construction.

Pin size
65mm Pins
254mm between ears
362mm Pin centres

Bucket Width 530mm
Max Opening 1800mm
Oil Pressure 150-170 bar
Oil Cylinder Thrust 11.7-13.3 T
Operating Flow 90-110 L/M
Weight 730kg

Would suit any of these machines pinned to the above specs:

- Case CX130, CZ135, CX145 (65mm pins, 355mm centres, 254 arm width)
- Daewoo 140 130
- Doosan DX140 (65mm pins, 409mm centres, 260 arm width)
- Hitachi EX100 EX110 EX120 EX130, EX135
- Hitachi ZX110 ZX120 ZX130 ZX135 ZW140
- Hyundai R110 R130 R140 (65mm pins, 390mm centres, 260 arm width)
- Kobelco SK120 SK125, SK135, SK140, SK130 (65mm pins, 370-376mm centres, 250 arm width)
- Sumitomo SH120, SH125, SH130, SH135, 65mm pins, 355mm centres, 254 arm width)

Check your machine pin size here
https://diggercity.co.nz/pages/digger-hitch-size
